Bending Die Sets for Sheet Metal Fabrication

Bending is the process of forming precise angles in sheet metal without causing cracks or deformation. It is essential for manufacturing brackets, enclosures, and structural components.

The Porta Press Bending Die Set enables efficient and accurate bending of small metal parts. Featuring a standard North American 1/2” x 5/8” tang, these die sets offer compatibility with pneumatic punch presses for flexible, repeatable bending operations during production.

Double Form

Press Brake Setup

Video Demonstration

Available Bending Forms

90° Bottom

90° Rib Form

Channel

Closing

Double Form

Hat Channel

M.T. Offset

Offset

Open Hat

Radius

Single Form

Wipe Die

Punch Tip Radius Chart

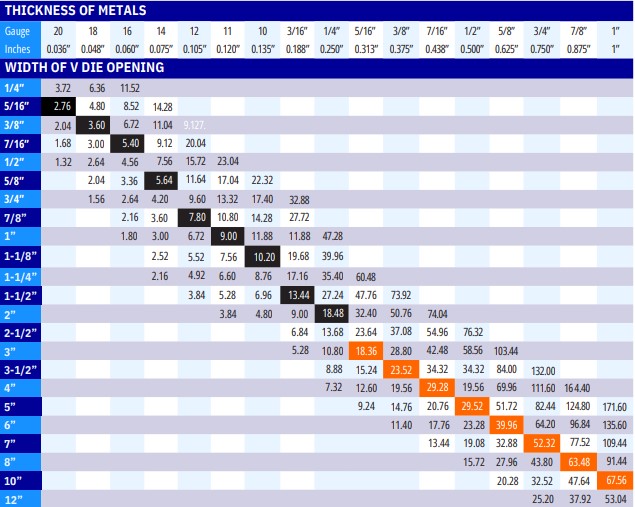

Bending Tonnage Chart

To explore more applications, visit our Applications page.
