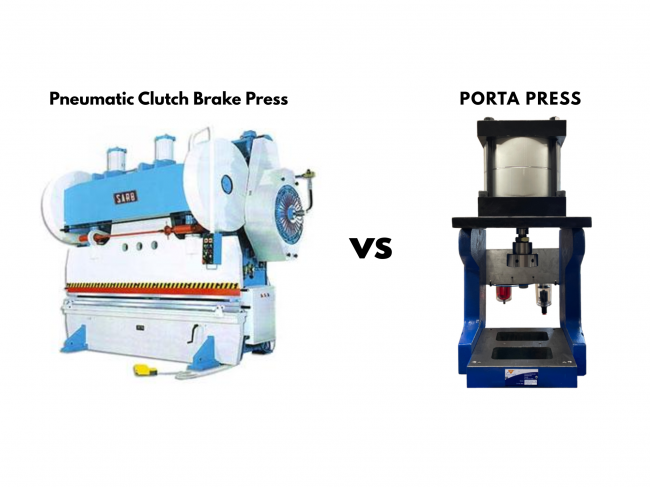

Press Brake vs. Porta Press: Choosing the Right Sheet Metal Bending Tool

When it comes to bending sheet metal, the traditional solution has long been the press brake. Also called brake presses or simply brakes, these machines use tooling known as dies and punches to bend metal. A typical brake press has an upper section holding a punch (usually V-shaped) and a lower section with a matching die. The two sections come together, forcing the sheet metal to bend along the desired angle.

Brake presses are generally described by tonnage and working length, with additional specifications like stroke, distance between upper and lower tooling, distance to the back gauge, and work height. While most press brakes operate within standard ranges, there are specialized machines for unique applications. If you’re investing in a new or used press brake, it’s important to consider the type of bending you’ll be performing.

Types of Press Brakes

Press brakes can be categorized by how they apply force:

• Mechanical: Energy from a flywheel powers the ram through a clutch and crank mechanism. These presses are less precise because the stroke cannot be stopped mid-cycle, making them less ideal for high-end fabrication. However, they are simpler and more affordable.
• Pneumatic: Use air pressure to operate the ram. Typically limited to lower tonnage applications.
• Hydraulic: Powered by synchronized hydraulic cylinders, offering precision, control, and the ability to move the ram at any point in its stroke. Dominant in the market since the late 1950s.
• Servo-electric: Use a servo motor with a ball screw or belt drive to control the ram with accuracy and repeatability.

Modern improvements include back gauges, which accurately position material for consistent bends and allow programmable movement for complex parts. Tooling also varies widely—from standard V-shaped punches to specialized goose-neck and deep-box tooling for intricate profiles.

Enter Porta Press: A Smarter Alternative

While traditional press brakes are powerful and versatile, they come with challenges: high cost, large footprint, and the need for extensive setup and operator skill. That’s where Porta Press shines.

The Porta Press is a portable, lightweight sheet metal bending tool designed for small-scale or on-site projects. It provides:

• Quick and easy bending without complex tooling
• Portability for field work or limited-space shops
• Precision for small to medium bends
• Affordable alternative to large, stationary press brakes
• Capable of punching a wide range of metals, including sheet metal, aluminum extrusions, channels, tubing, pipes, metal bars and flat stock, angle iron and L-shaped sections, straps or plates of various thicknesses, and other custom or irregular metal profiles.

Unlike traditional press brakes, Porta Press uses a pneumatic system, eliminating the need for complex tonnage calculations, large hydraulic setups, or heavy infrastructure. Like a press brake, Porta Press can accommodate different dies for various applications, providing flexibility for a wide range of bends and punches. It’s ideal for prototyping, repairs, HVAC work, or custom metal projects—delivering fabricators speed, convenience, and reliable performance without the typical overhead.

Choosing Between a Press Brake and Porta Press

• Use a press brake if you need to bend large volumes of sheet metal with high tonnage, require specialized tooling, or need precise multi-bend automation.
• Use a Porta Press if you want portability, ease of use, lower cost, and sufficient precision for small-to-medium sheet metal projects.

In short, Porta Press offers a flexible, efficient alternative for projects where traditional press brakes are overkill. It brings professional bending capability to the shop or job site without the complexity of heavy machinery.
